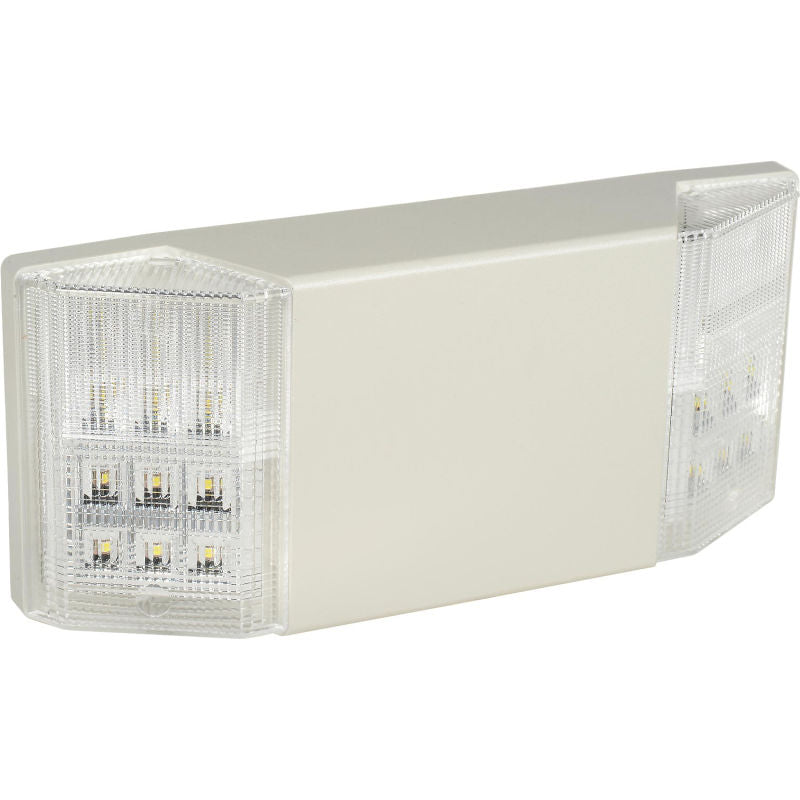

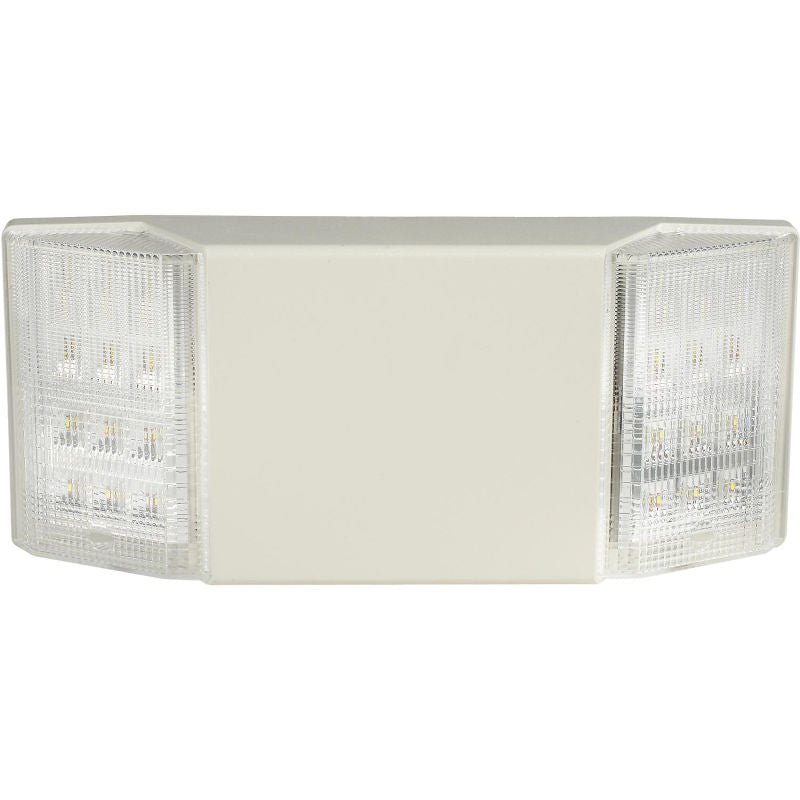

Global Industrial™ 2 Head LED Emergency Unit w/ Fixed Optics and Ni-Cad Battery Backup

Global™ 2 Head LED Emergency Unit w/ Fixed Optics and Ni-Cad Battery Backup

Intended Use:
Provides a minimum of 90 minutes of illumination for the rated wattage upon loss of AC power. Ideal for applications requiring attractive unit equipment with quick installation.

Listings:
UL Listed. Meets UL924.

Construction:

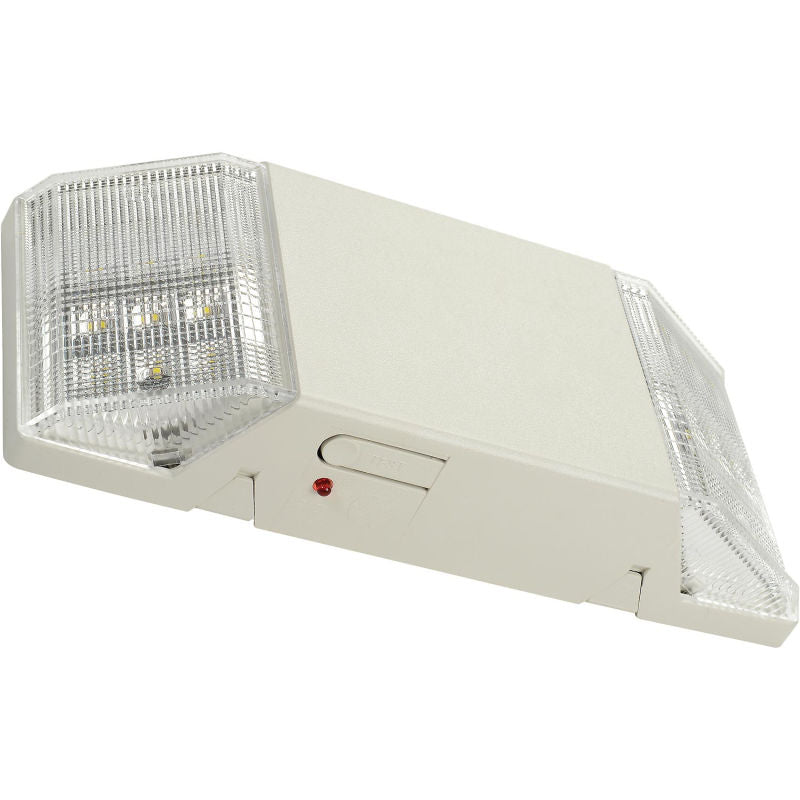

White, low-profile contemporary design. Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion-proof. UV-stable resin resists discoloration from natural and man-made light sources.

Optics:

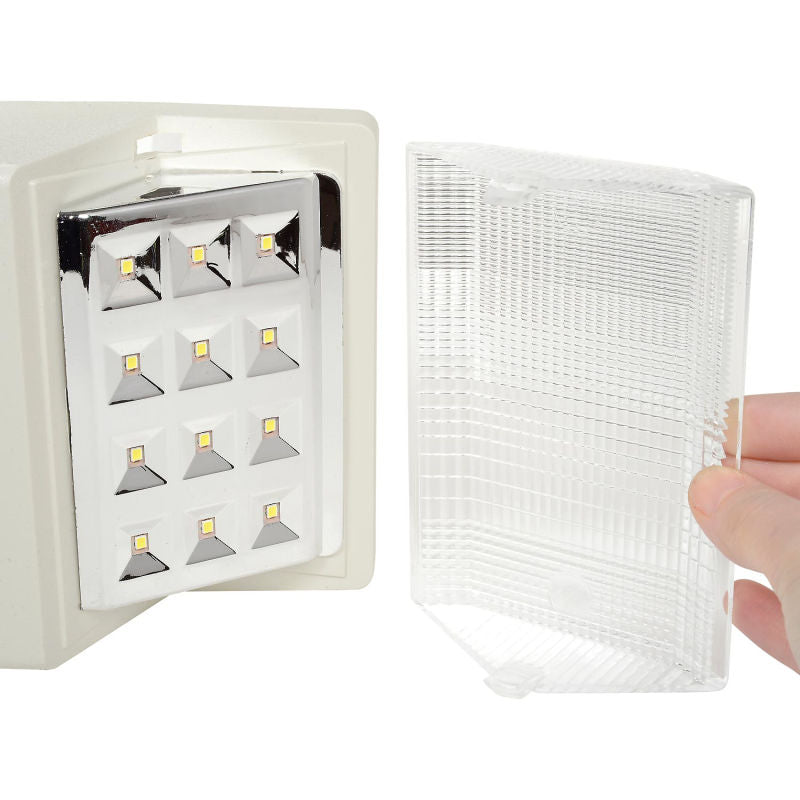

Two- Fixed 5w LED lamp heads with 12 series-parallel white LEDs each. Typical LED lamp life is 10 years.

Battery:

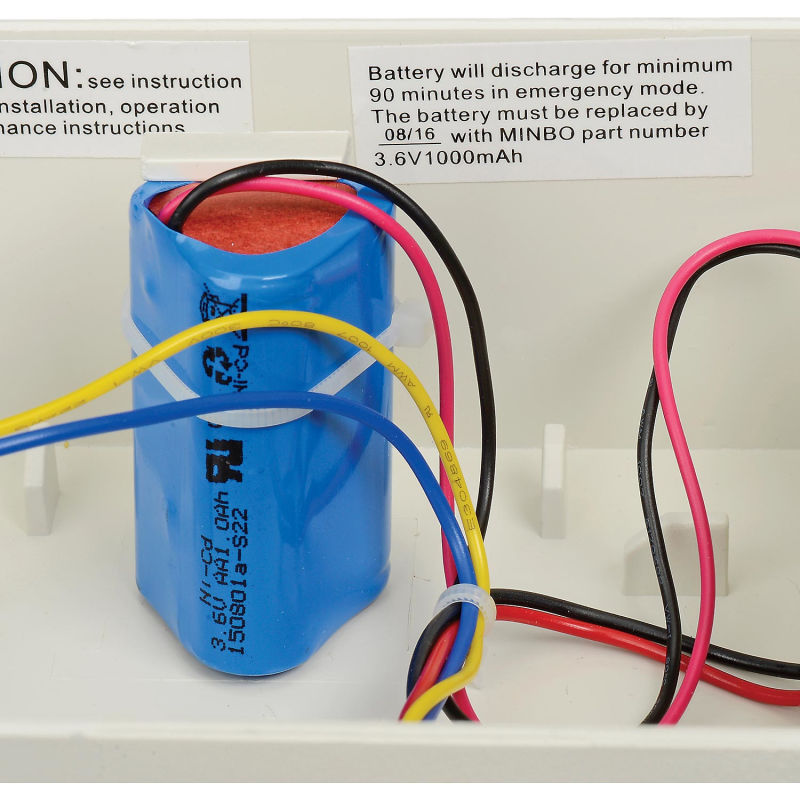

Sealed, maintenance-free, 3.6V nickel-cadmium battery delivers 90 minute capacity to emergency lamps. Constant-current charge maximizes battery life and automatically recharges after battery discharge.

Electrical:

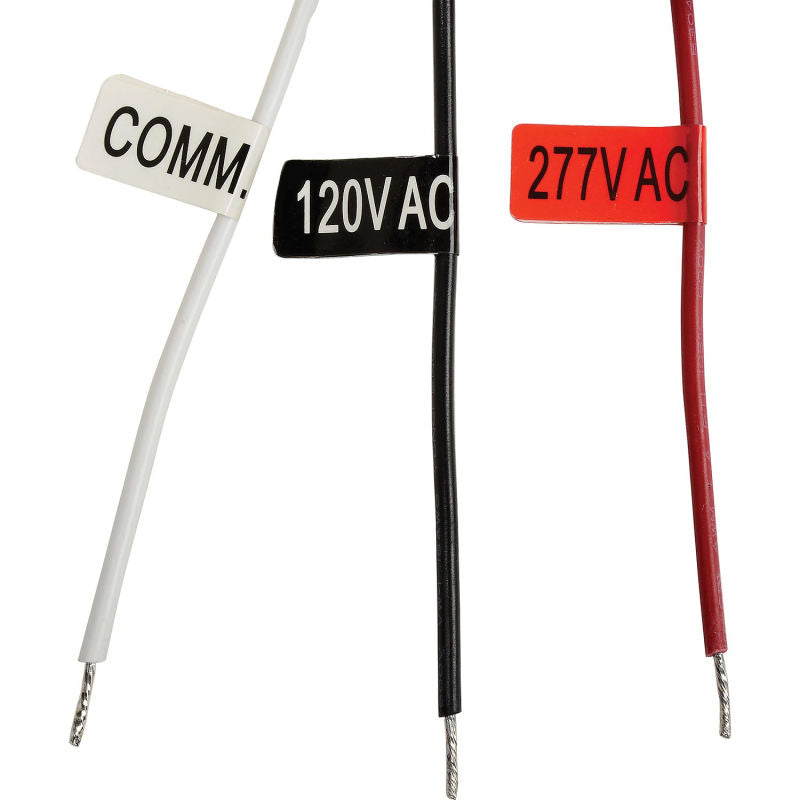

Multi-volt input capability (120/277V). Provides low operating costs. Short-circuit protection — current-limiting charger circuitry protects printed circuit board from shorts.

Mounting:

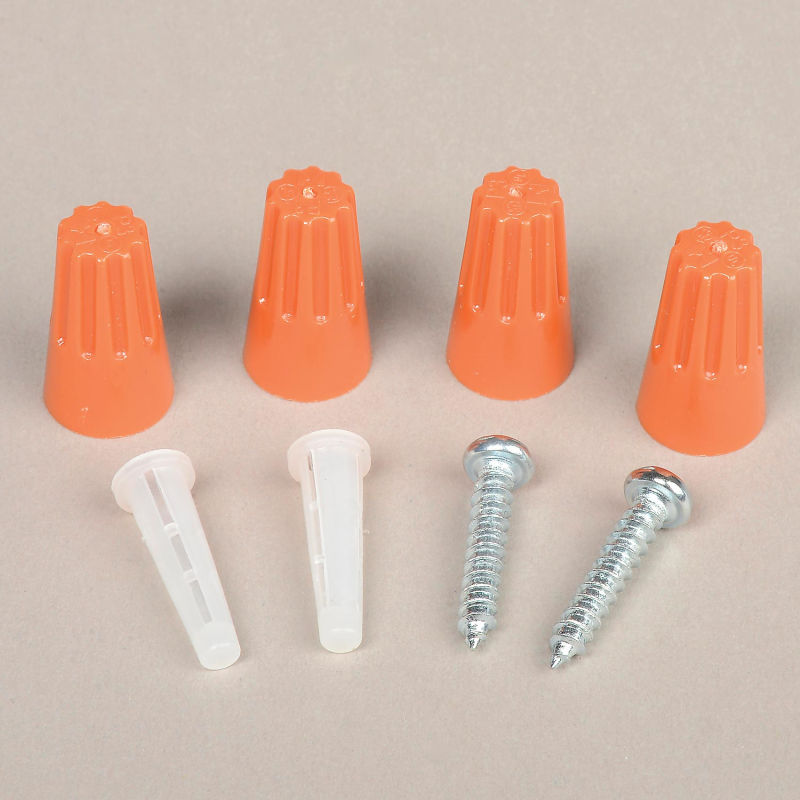

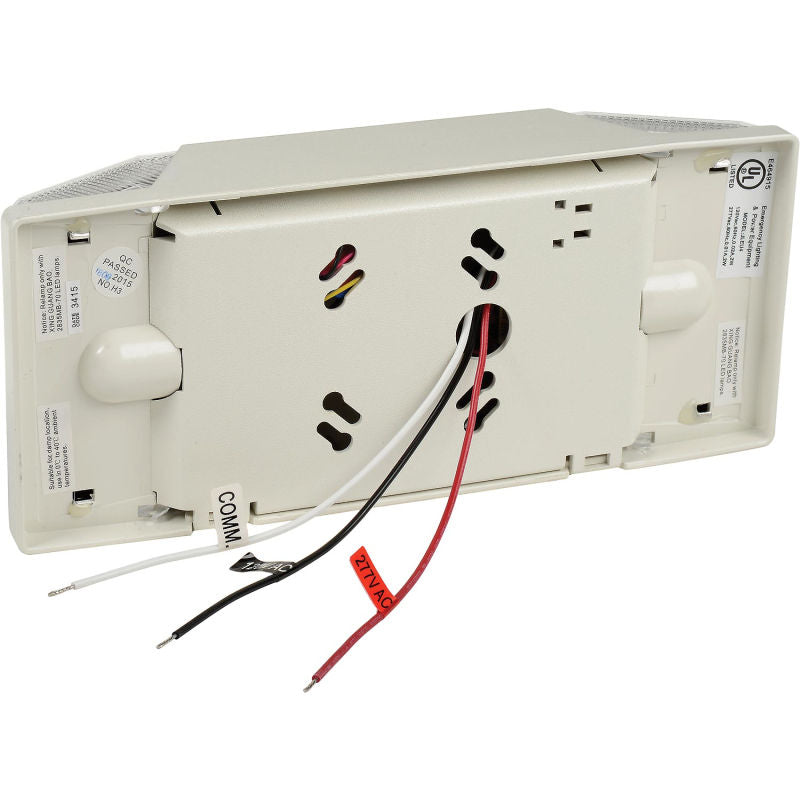

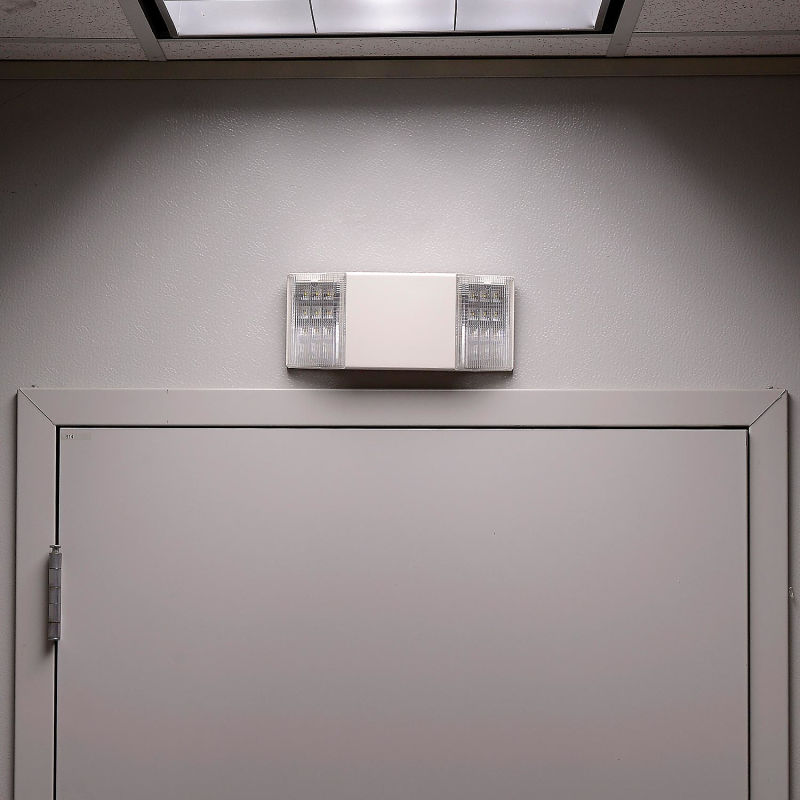

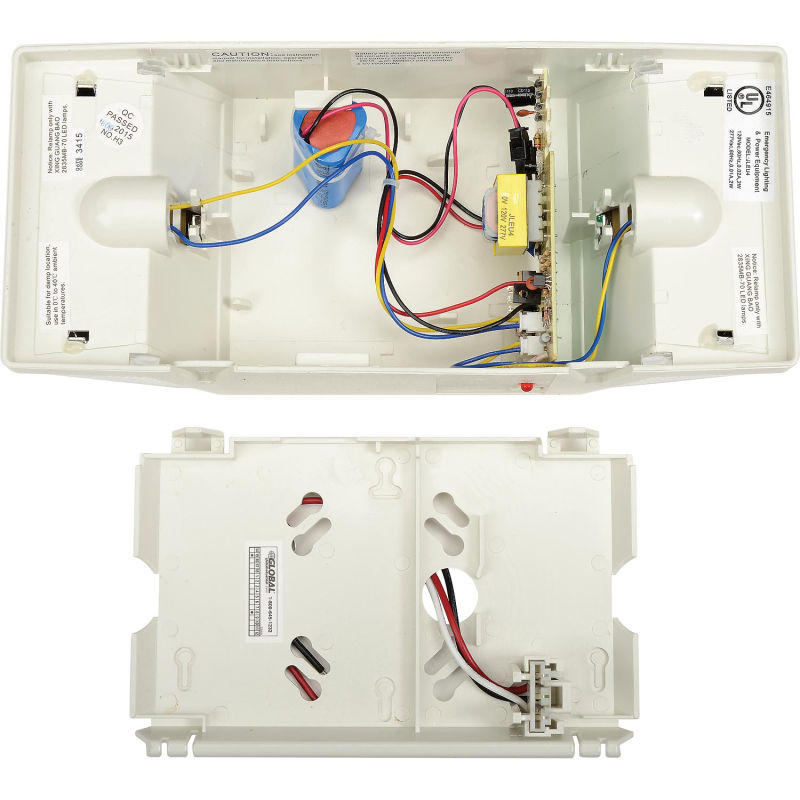

Universal J-box mounting pattern. Tool-less access for maintenance. Flexible conduit entry provision on top of the unit. Wall or ceiling mounted.

Product Specifications

• BRANDGlobal Industrial™
• MANUFACTURERS PART NUMBER500788
• PACKAGE QUANTITY1
• WATTS5.4
• TYPEEmergency Light- Fixed Optics
• WIDTH INCHES11.8
• HOUSING MATERIALThermoplastic
• COLOR FINISHWhite
• HEIGHT INCHES5
• RATINGUL924
• DEPTH INCHES2.25
• CERTIFICATIONSC-UL
• BULB TYPELED
• VOLTAGE120/277
